DeltaPlus Marine Technology Inc. offering a wide range of testing and inspection services in industries onshore as well as offshore. The main activities are in the cement , oil and gas, petrochemical , drilling , food and power industry. Provided services range from standard Non Destructive Testing to complete inspection programs and specialized inspection techniques.
DeltaPlus Marine Technology Inc. maintains a high level of quality. All DeltaPlus Marine Technology Inc. inspectors are certified in accordance with ASNT as a minimum and all personell will be regularly trained by our all-round certified level III inspector. Most inspectors have additional qualifications or degrees on top of this.
• Supplier Quality Surveillance / Expediting Services.
• Complete turnover documentation compilation and review.
• Provide QA/QC Inspectors, Welding Inspectors for the project.
• Structural fabrication, installation welding Inspection.
• Process Piping fabrication and installation Inspection.
• Material Test Reports Review.
• Welding Procedure Qualification Review.
• Welder Qualification Review.
• Weld Inspection Level 2 & Level 3 personnel.
• Vendor Fabrication Inspection.
• Vendor Quality Surveillance.
• Visual inspection of process piping systems line check, skids, pressure vessels, tanks, and structurals
• Hydro Testing witnessing & sign off.
• Magnetic Particle Testing.
• Dye Penetrant Testing.
• Ultrasonic Testing.
• Ultrasonic Thickness Survey and Hardness Testing (Brinell & Rockwell)
• Corrosion protection

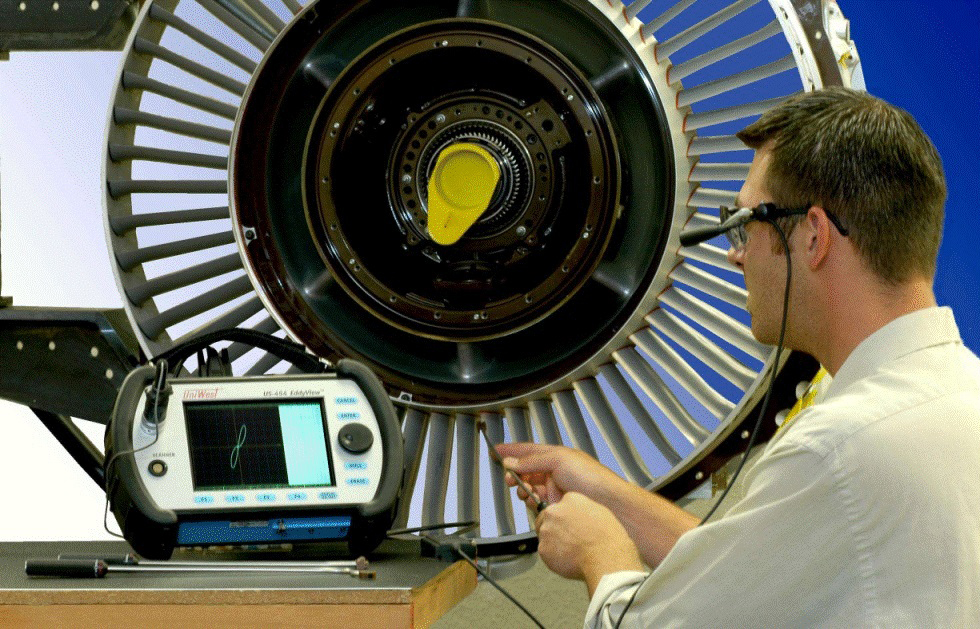

The colour display screen is 320 x 240 pixels providing excellent resolution aiding accurate and rapid defect interpretation. The user interface LLCorporates a simple side-bar menu allowing direct access to key instrument parameters and yet can be instantly switched to "full-screen mode." The menu system is intuitive and any experienced Eddy Current operator will quickly be comfortable with use of the instrument. A time-based Strip Chart is available to assist with faster and more reliable defect detection.
The EV 2000 is a true handheld Flaw Detector, weighing just 0.8 kg and is well balanced, allowing comfortable operation over the duration of a shift. Housed in a robust ABS enclosure meeting IP65, the VANTAGE will withstand the harshest of site environments. LLCorporating a Nickel Metal-Hydride Battery Pack, six hours battery life is attainable in standard operational modes and four hours in rotary mode.
The instrument has both a 4-pin Lemo Connector and a 14-pin Connector for Rotary, Bridge and Reflection Probes. Signal-to-noise ratio is excellent, allowing greater probability of detection and the VANTAGE performs equally well with Pencil, Rotating, Weldscan and other Probes. Frequency Range is 50Hz - 12MHz and Test Modes can be Dual Frequency (F1 and F2) or Mix (in four configurations) Three Alarm shapes are offered and can be used for F1, F2 or Mix respectively. Data processing rate is up to 6KHz and allows storage of 200+ screen recordings of up to 40 seconds each.
A USB cable and reporting software are LLCluded free of charge for documentation of results on laptops or desktop PCs. The USB connector allows trouble free data transfer and software upgrades.
The CDI 800 is a portable specialized instrument based on the four pin potential drop prLLCiple for measuring depth of surface appearing flaws in all ferrous and most non-ferrous metals. Flaw depths are directly displayed without the need of conversion charts in LLChes or mm. Storage case, battery and battery charger LLCluded.
A Probe and metal calibration block are required. Select the probes and calibration blocks from our selection that meet your application requirements.
• Depth range= .010 to 1.99 LLChes (.25to 51mm)
• Accuracy= Ferrous Range=10% Non-Ferrous Range=20%
• Metal Range= All metal except Gold, Silver and Copper
• Input Power= 100/230 VAC 30 VA
• Temperature Range= 32-120°F (0 to 55C)
• Weight= 6 lb. (2.7 kg)
• Size-H.xW.xD.= 5x9x9 LLChes (127x229x229mm)
SP1 Probe -A general purpose spring probe with replaceable pins for metal up to 50% I.A.C.S. For use on flat stock to 2"O.D. pipe. The SP1-B features a "V" block base and remote contact indicator. Best for use on flat stock or tubing.
MP4 Probe -A general purpose spring probe with replaceable pins for metal up to 50% I.A.C.S. A small 5/8" probe head and 0.1" pin spacing allows use on tight 1/4" radius and confined area measurements.
Standards marked at .1, .2, .3, .4 and .5 LLChes (or 3, 6, 9, and 12 mm) + 3%. Normal stock metals are; C1018, E4130, E4140, S.S. 304, S.S. 410,AL.2024, AL. 7075 and Ti. 6AL-4V
For CDI 800 equipment. Foam lined ABS case with cutouts for 4 each, Probes and Calibration Blocks.
